RockBoard Mini Mounting MOD DC - Side Access

The Mini Mounting MOD DC provides convenient access to the setup's multi power supply without the hassle of routing the power cable under the pedalboard. It fits perfectly into the mounting holes of the LED Light and is a versatile, clean mounting solution for all RockBoard® series pedalboards.

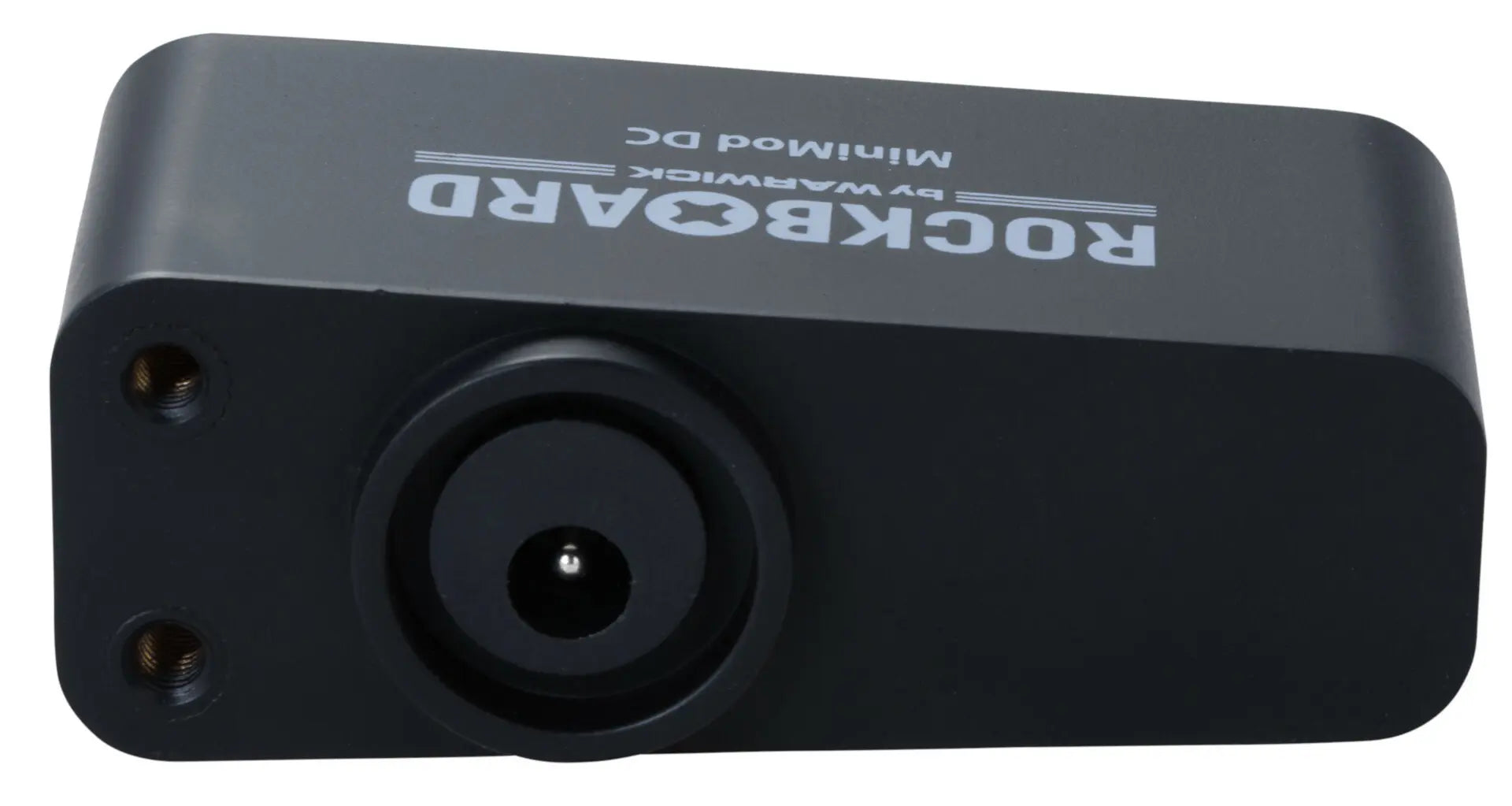

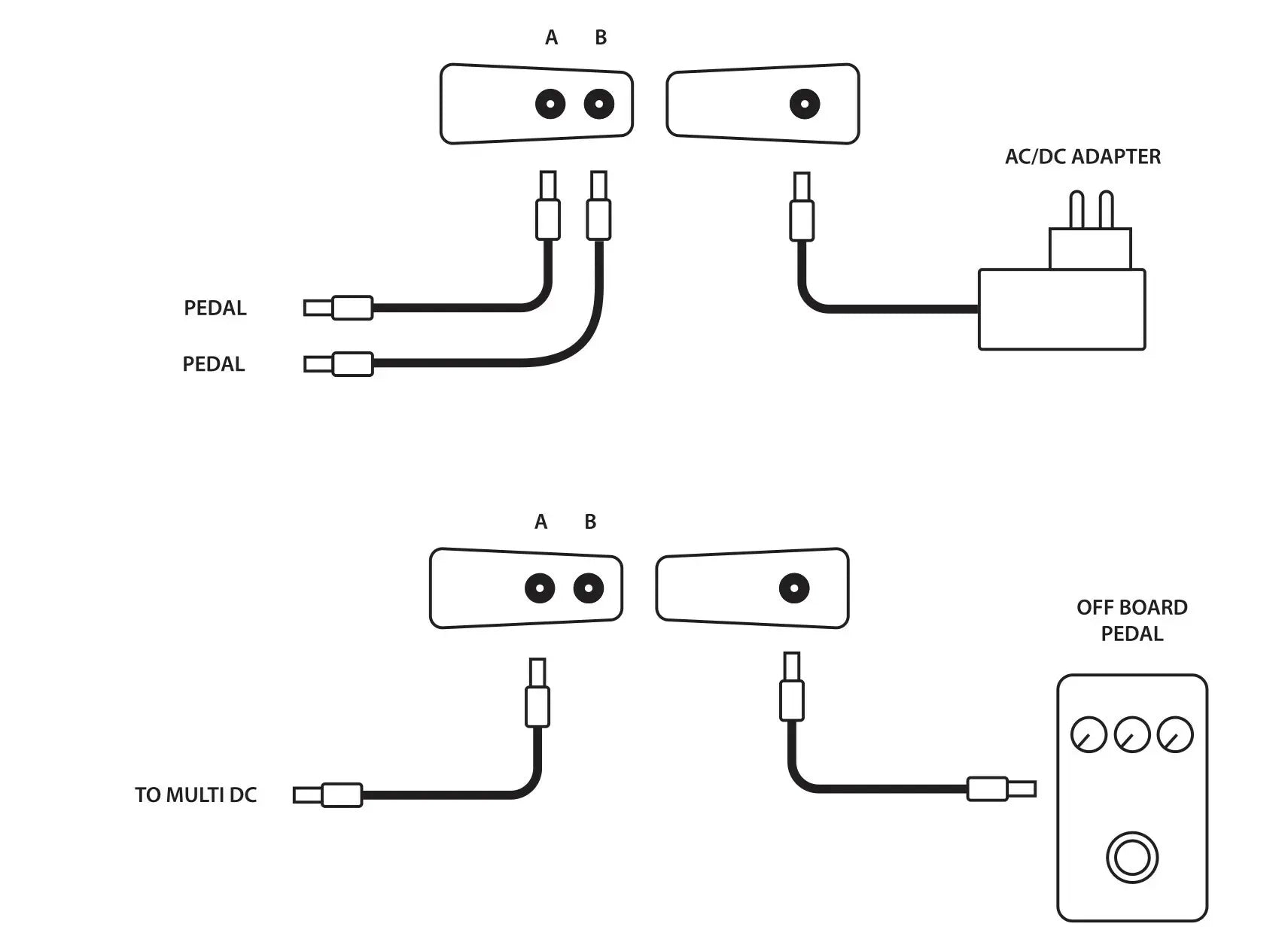

Central access to the power supply is provided by through-connected 2.1 x 5.5 mm DC jacks. Since the power connections are through jacks, it is also possible to power external pedals, such as a Wah, in the opposite direction. Instead of a multi-power supply, DC power cables or "daisy chain" distributors can be used to distribute power to the pedals. (Outputs A and B are wired in parallel).

*Note: The total current draw of all devices on the board should not exceed the output current of the connected multi-power supply or "daisy chain" connections to avoid damage to individual components. Make sure the voltage and polarity of the external power supply matches the requirements of the Multi Power Supply/Pedals.

Specs:

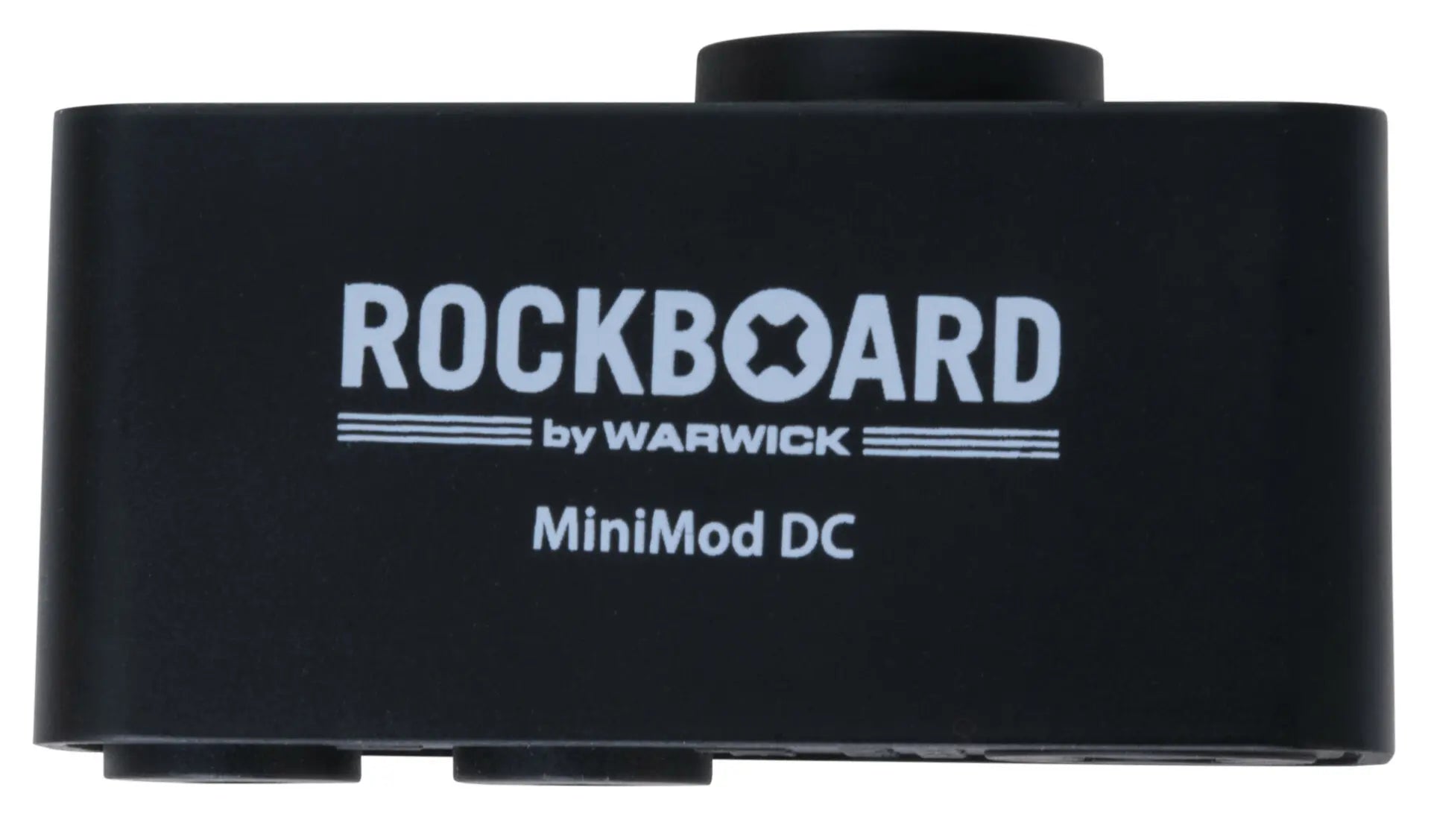

• Mini MOD DC

• mounting solution for RockBoard pedalboards and power supplies

• fits in the mounting hole for the RockBoard LED Light

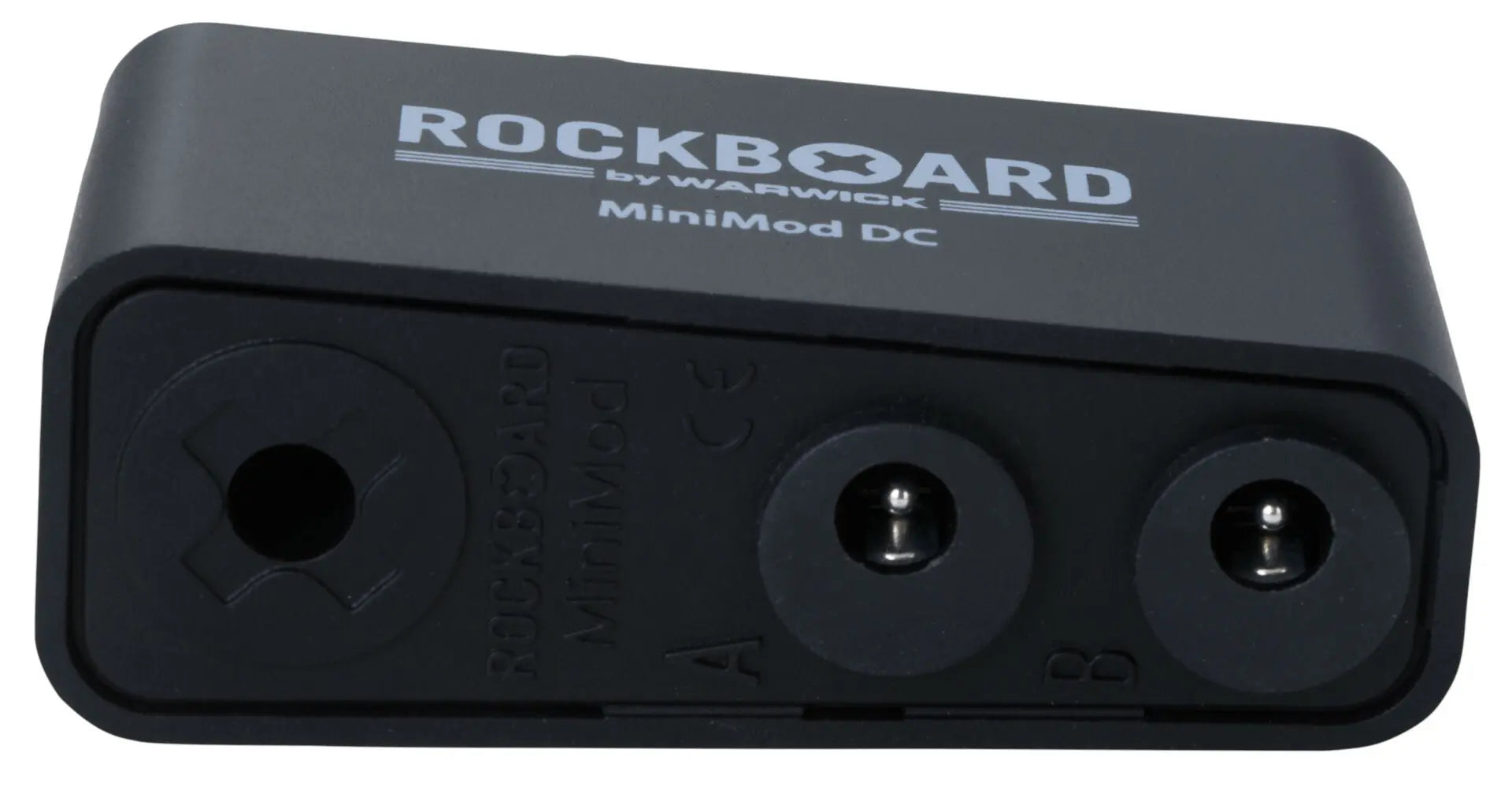

• 1 x DC 2.1 x 5.5 mm barrel jack to 2 x DC 2.1 x 5.5 mm barrel jack

• no drill holes necessary

• dimensions: (W x D x H): 25 - 20 x 35 x 70 mm / 63/64"- 25/32" x 1 3/8" x 2 3/4"

• weight: 30 g / 0.07 lbs

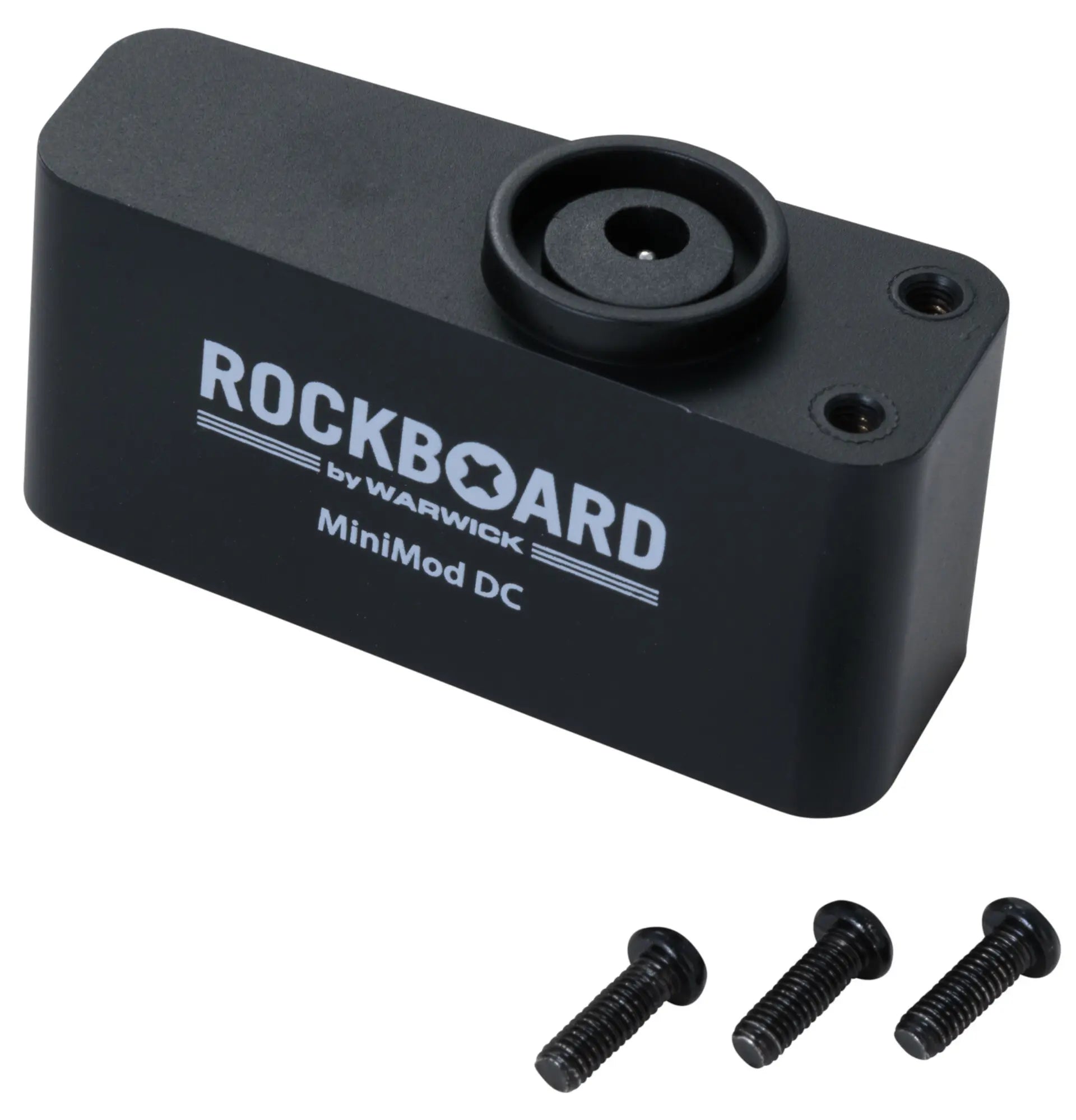

• incl. mounting screws
